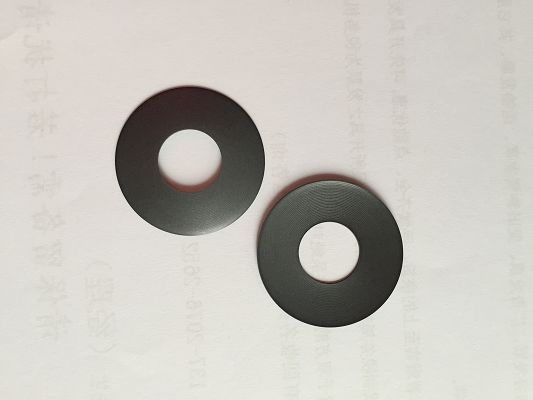

Carbon filled PTFE ring disc with low friction band sinter piston for car shocks
Specifications:
| properties | unit | result |
| Apparent density | g/cm3 | 2.10-2.30 |
| Tensile strength(min) | MPa | 15.0 |
| Ultimate elongation(min) | % | 150 |
| Working Temp. | ℃ | -180~260 |
| Melting point | ℃ | 327 |
| Produce Max Temp. | ℃ | 385 |
| Size | mm | 20mm~400mm |
1. Low water absorption
2. Corrosion resistance
3. Temperature resistance
Description:
PTFE Oil Seal
Various size available
Performance: high and low temperature-resistant
Corrosion-resistant
High insulation
PTFE (PTFE) oil seal includes internal and external frame steel, main and auxiliary PTFE lip, sealant,
gaskets and cover rubber.
Excellent performance:
High and low temperature-resistant, corrosion-resistant, high-lubricating, high insulation
PTFE can work together with other materials like fiberglass or copper to get a better mechanical property.
When PTFE is expanded properly, the fiber changes from hair-like structure to a web-like structure and
become much stronger while it is much lighter.
Application:
It is used for seal of engine crankshaft, detection machine, gear-box and oil resistant seal for other
machine. It can be also used to seal water, alkali, acid, corrosion according to the client's special
requirement.
Our PTFE range includes:
Gaskets/Piston Seals/Rod Seals/Wipers/Bearing Strips/Spring Activated Seals/Rod
Back up Rings & Strips/Ropes
Applications:
Automotive, Transportation, Filling Machinery, Food Machinery, Oil exploitation, Sanitary plumbing,
Medical Machinery, Textile machinery, Mining machinery, Exercise equipment etc.
Competitive Advantage:
1. Good quality: We have strict quality control system. Good reputation in the market
2. Quality Control: Approved by GB/T 19001-2008/ ISO9001:2008
3. Fast and cheap delivery: We have big discount from forwarder(Long Contract)
Picture show:
Product Tags:
|
|
Carbon Filled PTFE Ring Disc PTFE Ring Gasket With Low Friction Band Sinter Piston For Car Shocks Images
|
